Applegate® Turn-Key Injection Foam Trailer
Unrivaled Value, Unrivaled Flexibility & Unrivaled Support™
Looking for a high-quality, full-size, Turn-Key Injection Foam Trailer that will provide years of service at an affordable price?
We have the ultimate solution for you!
Our Turn-Key Injection Foam Trailer is the workhorse of the Injection Foam industry.
Built by experts to perform year after year, this rig will handle any job you throw at it. Our Turn-Key Injection Foam Trailer is backed by a full one-year warranty and some of the onboard equipment carries two-year warranties or more.
We want you to feel confident, knowing that we stand behind our equipment, our products and most importantly, our team. We don't just say Unrivaled Support™... we mean it.

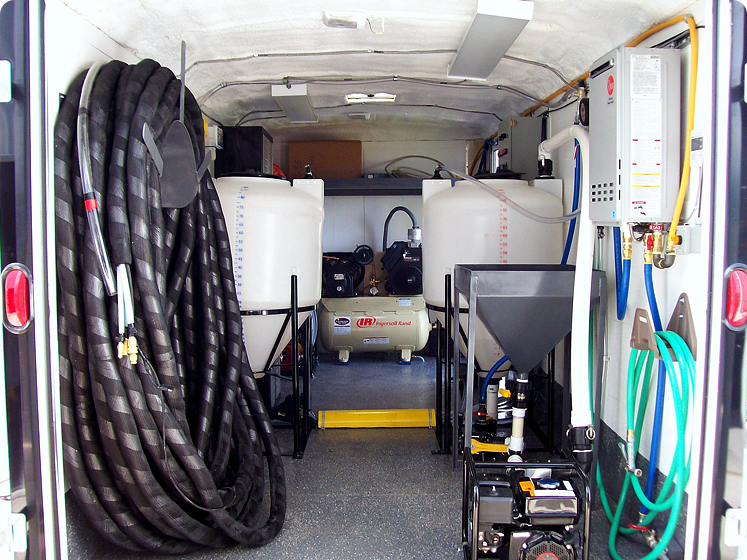

Turn-Key Injection Foam Trailer Pictures
Click any image below to get much larger version (some pictures may show optional upgrades installed).
Looking for a high-quality, full-size, Turn-Key Injection Foam Trailer that will provide years of service at an affordable price?
We have the ultimate solution for you!
Our Turn-Key Injection Foam Trailer is the workhorse of the Injection Foam industry.
Built by experts to perform year after year, this rig will handle any job you throw at it. Our Turn-Key Injection Foam Trailer is backed by a full one-year warranty and some of the onboard equipment carries two-year warranties or more.
We want you to feel confident, knowing that we stand behind our equipment, our products and most importantly, our team. We don't just say Unrivaled Support™... we mean it.
| Turn-Key Injection Foam Trailer Summary Specifications | $ 43,900.00* plus tax *Prices Subject To Change |
|---|---|
| Item Description | Item Description |
| 16' X 7' 7000 #GVW Tandem Axle Trailer with Trailer Brakes | On Demand Hot Water Heater |
| 30 Gal 20 CFM 11HP Air Compressor | 7000 KW Generator and Breaker Box |
| HyrdoCell D10 Pumps (2) | 85 Gallon Storage Totes |
| 4HP Mixing System and Hopper | 250' of Application Hose with Hose Hanger |
| Foam Application Gun | 1" of Foam on Walls and Ceiling |
| Spare Parts Kit | Heavy Duty Epoxy Floor |
| 1 set of Applegate R Foam | |

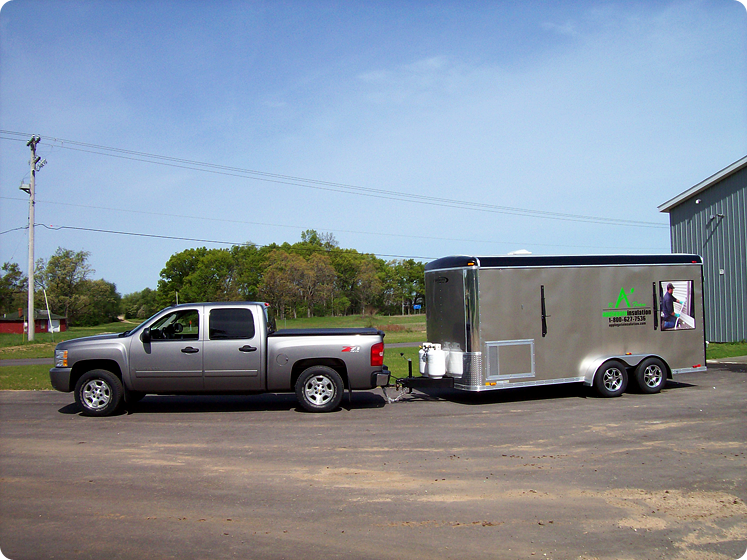

| 2 Days Training in Michigan (travel expenses not included) | Truck Recommended: ¾ ton truck with 500# Tongue Weight with 2 5/16" ball and 7-Way trailer plug-in socket. |
| Turn-Key Injection Foam Trailer Standard Equipment List |
|---|

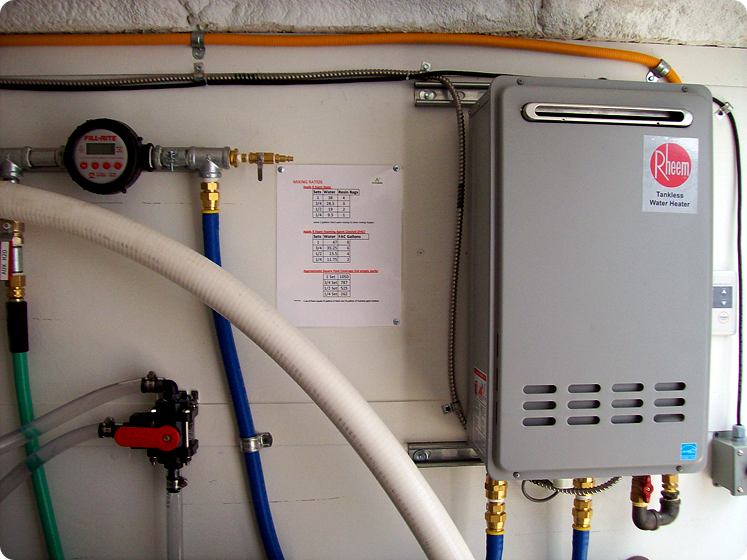

| 1: Hot Water System |
| • Hot Water Heater 120 K BTU On Demand |
| • (2) 30 Gal Propane Tanks Mounted on Tongue of Trailer |
| 2: Air System |
| • 30 Gal Horizontal 20 CFM 11HP Compressor Min. |
| • Coalescing & Air Filter System |
| • Air Hose & Air Gun |
| 3: Electrical System |

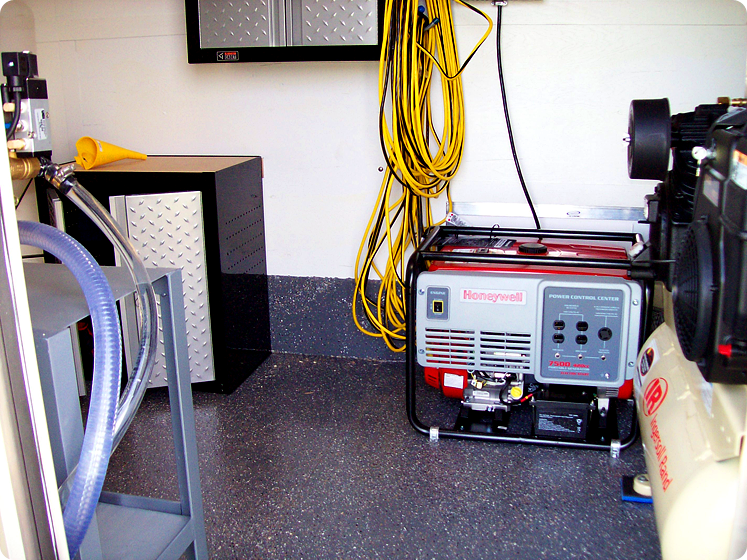

| • 7000w Min. Generator with Wiring & electrical connections, etc. |
| • Breaker box |
| • Outlet |
| • (2) Fluorescent lights |

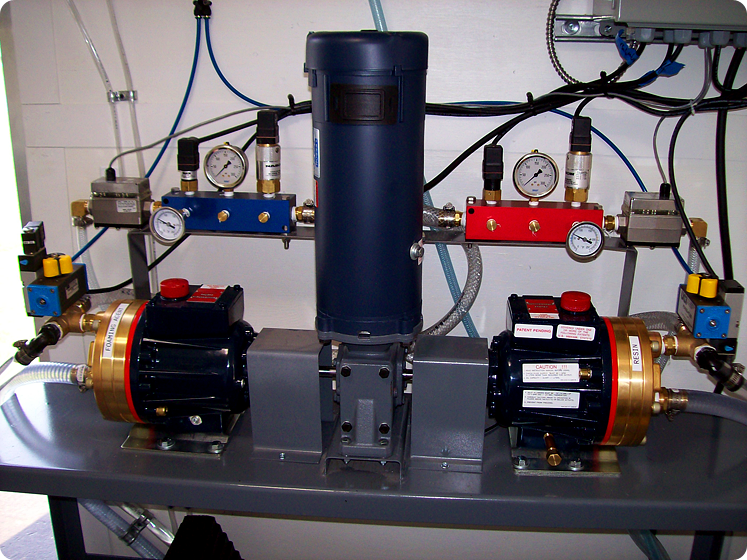

| 4: Foam Proportioning Pump System |

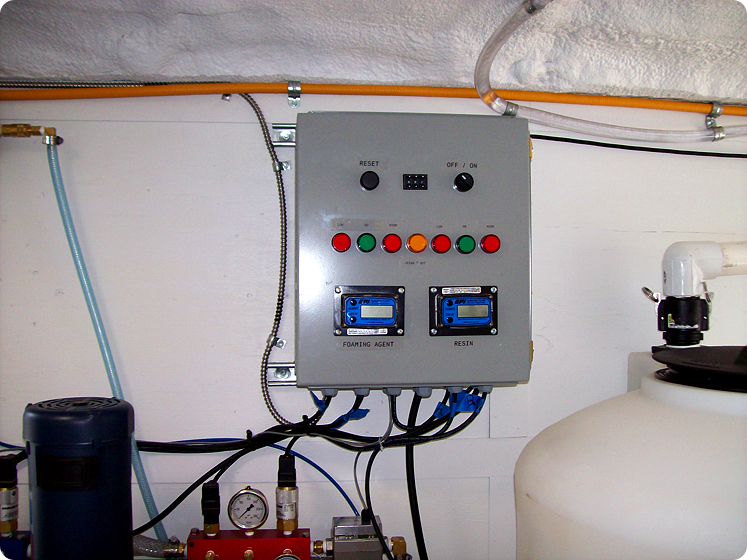

| • Control Box |
| • Flow meteres (high & low lights) |
| • (2) hydro cell D10 pumps |
| • Electric motor & gear box |
| • Air actuated ball valves & pressure switches with misc. brass fittings |
| • Steel pump stand & all steel parts |
| 5: Mixing System |
| • Mixing hopper |
| • Mixing pump 2" 4hp min. |
| • Mixing valves & plumbing as required |

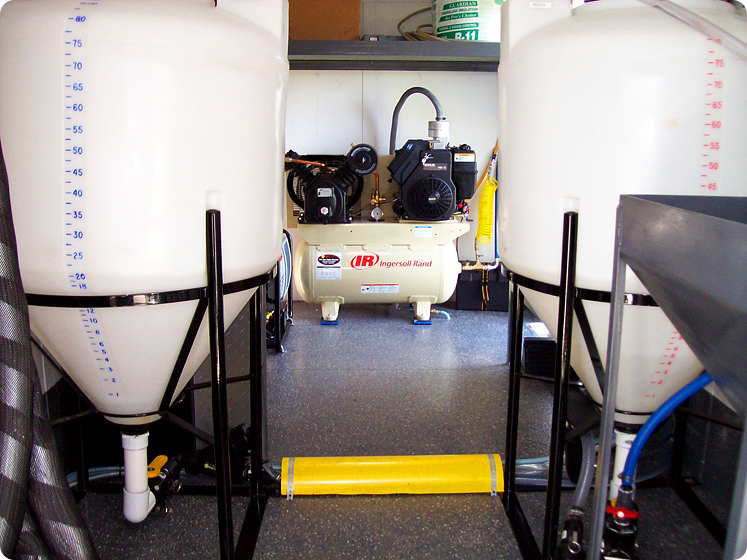

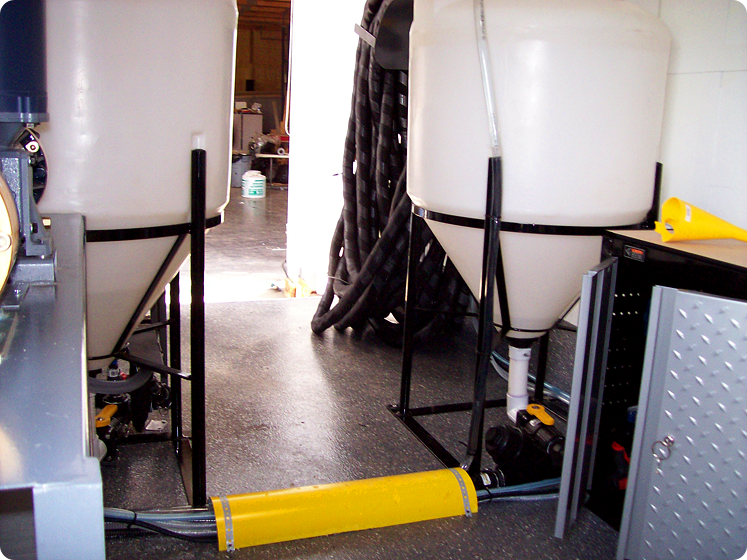

| • 2) 85 gal resin & FAC tanks conical with stands |
| • Plumbing for thanks, hoses, PVC, suction lines, etc. |
| • Fill-Rite System - (2) 20 GPM digital meters |
| • Misc. hoses, spray nozzle, hose hangers |
| • Fill hoses & clean out hoses |

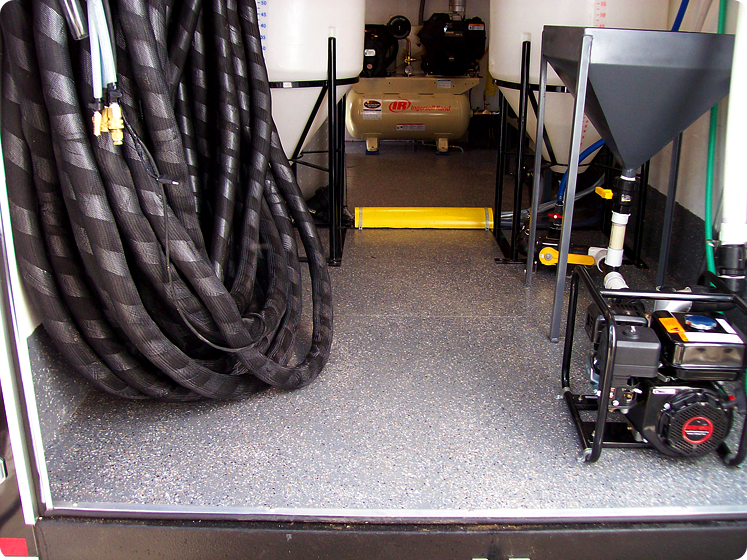

| 6: Hose System |
|---|
| • Hose hanger & gun holder |
| • Non-insulated hose for air, FAC, resin |

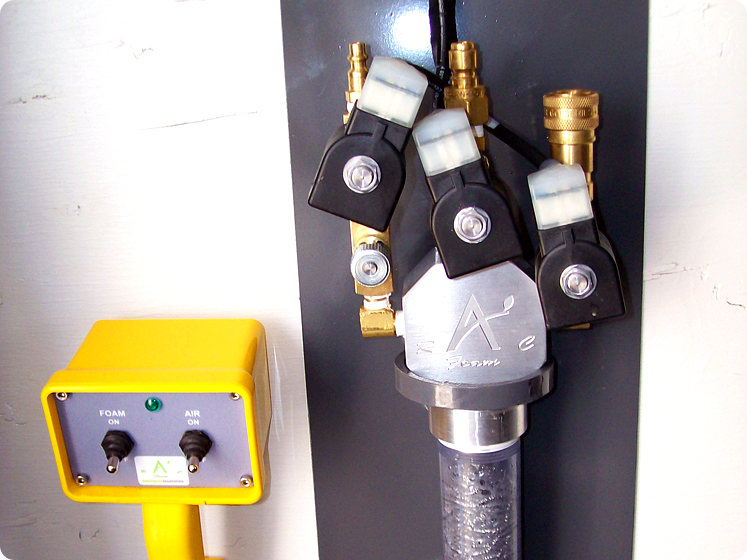

| • Foam gun |
| 7: Spare Parts |
| • Pump rebuild kit valves & diaphragms |
| • Scrungies, spinner for gun |
| • Gun switch |
| • Hose clamps |
| • Pressure gauge |
| • 750 foam plugs, 200 wood plugs |
| 8: Trailer |

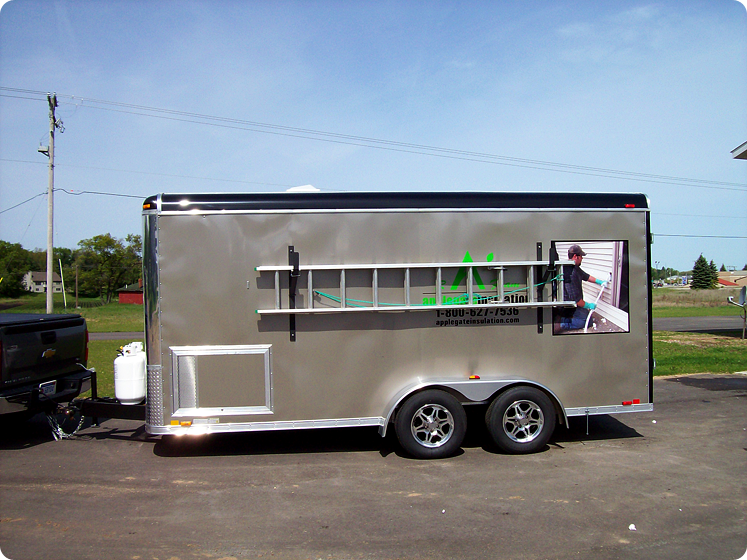

| • 16'x7' 7000# GVW tandem axle with both axles braked |
| • 1" of Foam on walls and ceiling |
| • Heavy Duty Epoxy Floor |
| • Wheel chocks |
| • (3) locks all keyed the same |
| • Generator door with key |
| • Painted floor & white walls |
| 9: (2) Days Training in Michigan1 |
| • Classroom & practical training |
| • Includes one set of foam for training |
| • Lunch provided |
| • 1 Note: Additional cost if done at customer location. Delivery, lodging, & travel is not included in pricing. |
| Item Description | |
|---|---|
| Ladder Racks on Exterior Wall | Please contact for pricing on upgrades |

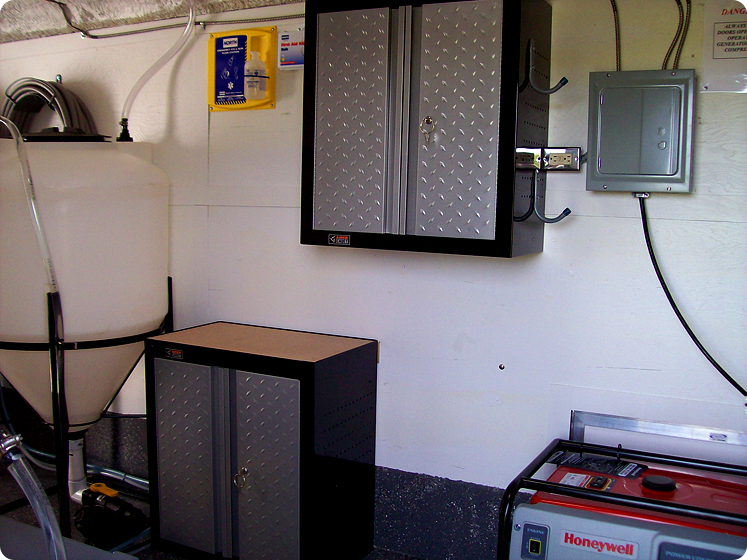

| Lower Cabinet | Please contact for pricing on upgrades |
| Upper Cabinet | Please contact for pricing on upgrades |
| Heavy Duty Epoxy Floor | Please contact for pricing on upgrades |
| 1" Foam on Walls and Ceiling | Please contact for pricing on upgrades |
| Scuff Jacket Insulated Hose | Please contact for pricing on upgrades |
| Decal Package - Graphics with Color Photo | Please contact for pricing on upgrades |
| Infared Camera FLIR-I7 | Please contact for pricing on upgrades |
| Ladder Package | Please contact for pricing on upgrades |
Financing for you and your customers
We also have financing to offer your homeowner customers, even 12-months, no payments, same as cash. You really need to offer your customers a financing plan if you are going to be successful in the retrofit insulation market.
We have that plan for you; a plan with many options that will fit all customers.
